JNS 系列四芯集束型耐张线夹(锚固金具)

产品详细:

架空绝缘导线金具 Aerial insulation conductor fitting

在当今社会生活中,人们对电的依赖与日俱增,对电网供电的安全性要求也越来越高,尤其是城网的要求更高。因此,城网供电线路以绝缘电缆代替裸线是适时的有效措施之一。同时,金具也应采取对应的措施,使其具有绝缘功能的方法有两种,一是应用绝缘材料,设计新的具有绝缘功能的金具。二是为金具设计绝缘罩达到绝缘效果。

Nowadays,more and more people rely on the electricity,and also pay more attentions to the safety of power supply of the electrical network.especially the town network.Therefore,one of the most effective measures to be taken is to adopt hte nsuloation conductor ins tead of the bare iwre in terms of power supply of town network.Meanwhile,fitting should also be taken the corresponding measureswhich has two insulating function:one is to use the insulating materials.and to design such kind of fitting whic has the insulating function;the other is to design the insulation cover so as to reach the effect of insulation.

1.JNS 系列四芯集束型耐张线夹(锚固金具)JNS series four-core-centralized strain clamp(anchor clamp)

■ 用 途 Application

用于1kV及以下架空绝缘线路终端或线路耐张段两端固定、拉紧绝缘线。

For use with the end of aerial insulation lines up to 1kV.tighten up the insulation conductor.

■ 特 点 Features

本线夹为四芯并沟并槽结构,将四根绝缘导线夹入(不剥绝缘)后拧紧螺栓,夹紧的四根绝缘导线便可成束状,将拉杆锚固后,便可拉紧固定。

The clamp has designed four core parallel groove,after clamping the four insulation conductror (not remove the insulation layer),tighten up the bolt till stop.

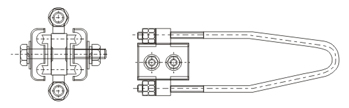

■ 外型及安装尺寸 Dimension drawings

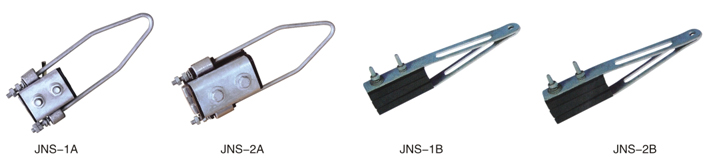

■ 安装状态图 Installation picture
