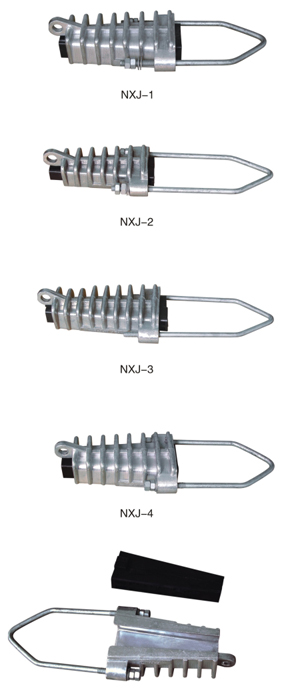

2.NXJ 系列楔型铝合金耐张线夹 NXJ Series wedge type aluminum alloy over-tension resistan clamp
■ 用 途 Application
NJX 系列楔型铝合金耐张线夹适用于1KV 和10KV 以下架空绝缘z铝芯线路（KJYJ）的终端或耐张段两端的耐绝缘子串上，将架空绝缘导线固定可拉紧。每种产品按导线规格规格分别配有不同的塑料楔芯。
NXJ series wedge type aluminum alloy overtension resistant clamp is applicable for the terminals of 1KV and 10KV (including not more than 10KV)aerial insulating aluminum core line,or it is used in the overtension resistant insulator bunch of the two terminal of overtesion resistant secitions,It can fix of fasten the aerial insulating lead.Every kind of product is respectively fitted with different plastic wedge core according to the norms of lead.

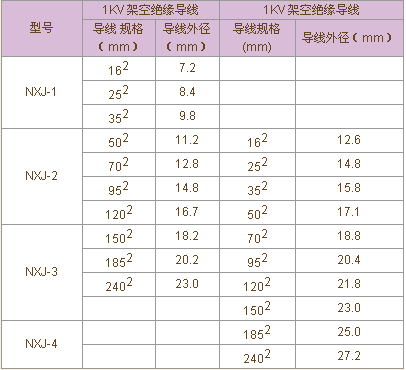

■ 规格及技术参数 Specification

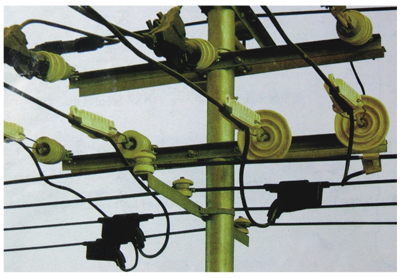

■ 安装状态图 Installation picture
