9. JET 系列楔型弹性线夹及绝缘罩 JET series wedge elastic type clamp and insulating shield

■ 用 途 Application

JET 系列楔型线夹适用于架空配电线路中导线的非承力接续，适用于铝接线或架空绝缘铝芯线，绝缘罩或线夹配套使用，起绝缘防护作用。

JET series wedge clamp is suitable for no-bearing connecting of conductor for overhead distribution circuit,alsk for mating aluminum connection,overhead insulation aluminum core wire,insulation shead or clamp.it takes effect on protection.

■ 结构特点 Structure feature

1. 非磁性材料，无电能损耗，故能达到节能之目的

2. 接触性能好，楔形弹力线夹与导线的接触面大，夹紧力恒定，直流电阻比率一般能达到0.85~0.9之间

3. 过载能力强，楔形弹力线夹，过载能力能达一核定电流2倍以上

4. 连接可靠，永不脱落

5. 热循环性能好，始终在直流电阻比率1以下不运行

6. 免检修、零故障、长寿命之目的

7. 适用于各种导线组合，适用性强，配套绝缘罩，实现线路绝缘化。

.1.No magenetic material.without electric energy wasting,it can get the goal of savng energy

2.Good contacting perfirmance,big contacting surface for wedge elastic clamp and conductor,stable clamping force,the rate of DC

resistance is 0.85~0.9

3.Strong overload capacity,wedge elastic clamp and over load capacity is 2 times of rated current,

4.Reliable connection,no dropping for ever

5.Good thermal circle performance,operating under the rate of DC resistance for less than 1 all thew time

6.Gail the aim of free maintenance,no-failure and long life

7.Suitable for kinds of conductor composite,strong applicability,mating insulation sheath,it relizes circuit insulation

■ 绝缘罩性能特点 Insulation cover performance feature

◆ 工频耐压: ≥18kV保压1分钟不击穿

◆ 绝缘电阻：＞1.0x1014Ω

◆ 环境温度：-30℃~90℃

◆ 耐气候性能：经人工气候老化试验1008小时后性能良好

◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown

◆ Insulation resistance: ＞ 1.0x1014Ω

◆ Environment temperature: -30℃~90℃

◆ Weather proof performance:have good performanced after 1008 hours artifical climte aging test.

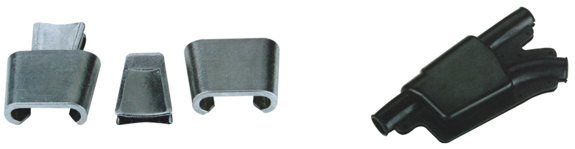

■ 产品分解图 Product exploed view

■安装状态图 Installation picture
