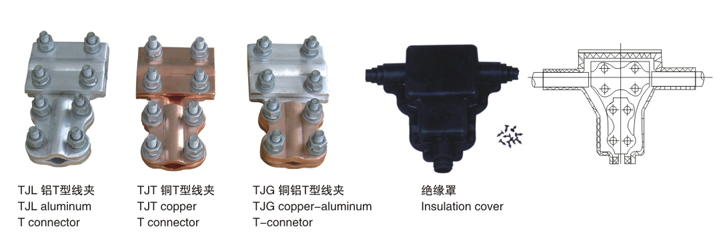

13.TJL、TJT、TJG系列T型线夹及绝缘罩TJL,TJT,TJG series T-connector and insulation cover

■ 用 途 Application

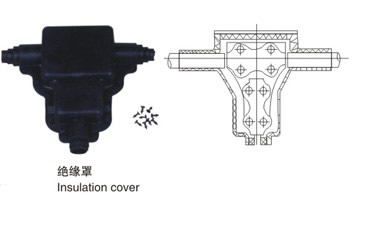

■ 绝缘罩性能特点 Insulation cover performance feature

TJT、TJT、TJG 系列T型线夹适用于10kV 架空绝缘电缆的分支

接续，也可适用于发电厂，变电所电气设备与架空线母线的T型

连接。绝缘罩和T型线夹配套使用，起绝缘防护作用。

TJL,TJT,TJG series T-connector is suitable for the branch connectrion of 10kV aerial insulation cable.also used for the

T-shape connection with electric faciltities and eerial bus in

power plant and transrormer substation.insulation cover and

T-connector are used together.It action is insulatio protection. ◆ 工频耐压: ≥18kV保压1分钟不击穿

◆ 绝缘电阻：＞1.0x1014Ω

◆ 环境温度：-30℃~90℃

◆ 耐气候性能：经人工气候老化试验1008小时后性能良好

◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown

◆ Insulation resistance: ＞ 1.0x1014Ω

◆ Environment temperature: -30℃~90℃

◆ Weather proof performance:have good performanced after 1008 hours artifical climte aging test.

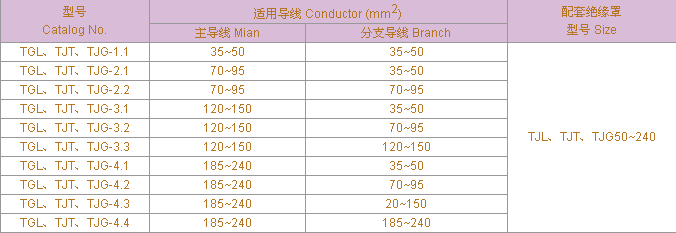

■ 规格及技术参数 Specification
